VISUAL QUALITY CONTROL

Optical inspection
for sheet metal.

Scan flat parts, compare them with CAD and create inspection reports.

Request a demo
Less waitingVisible deviationsDocumented quality
VQC optical quality inspection system
Precision inspection, designed for the shop floor
VQC / OPTICAL INSPECTION
DTMT HANGZHOU / Precision engineering. German origins.Scroll to explore ↓
01 / WHY VQC

Built for real
sheet metal parts.

VQC / CAD COMPARISON

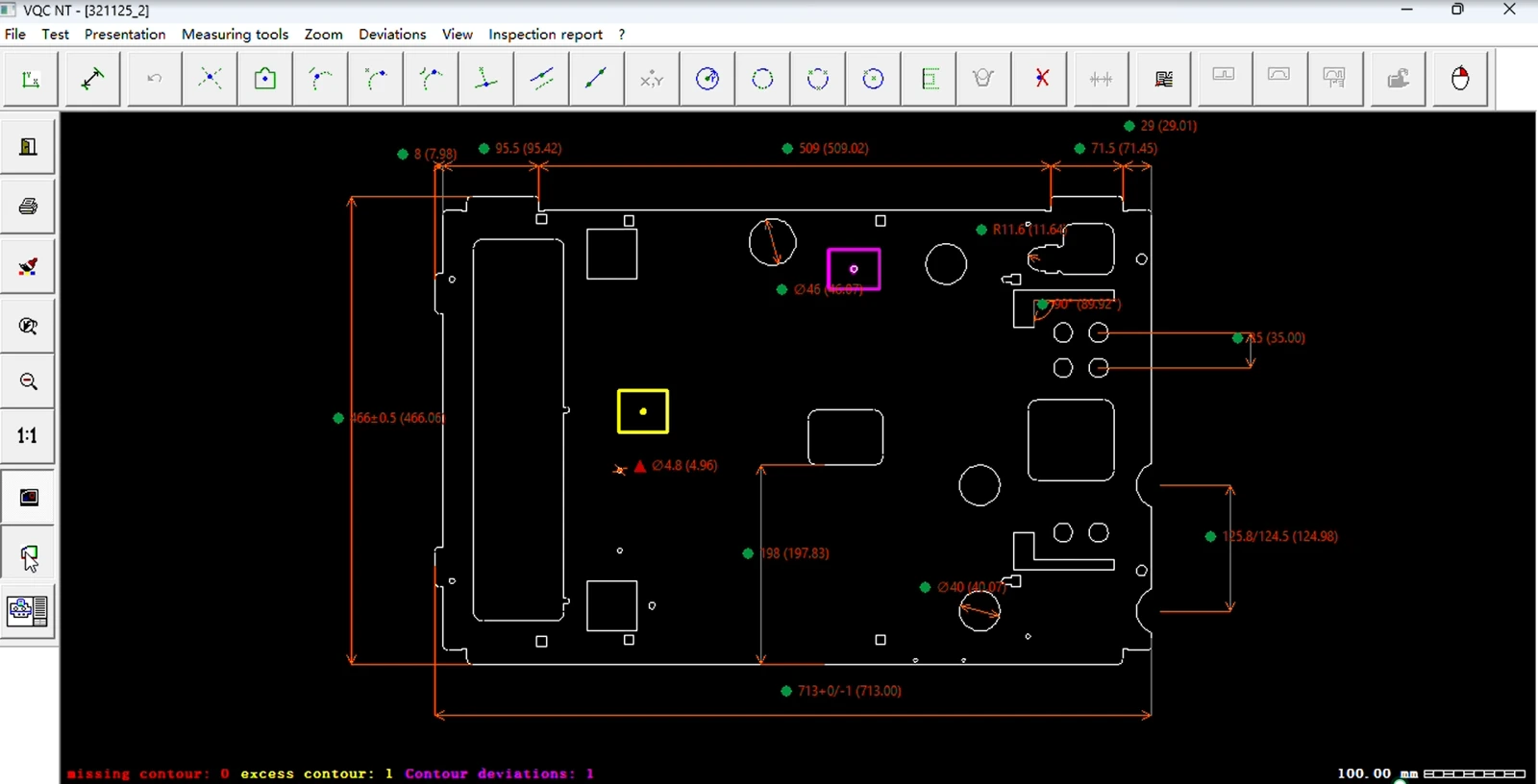

Contour deviation comparison in the actual VQC software
Actual software · Measured contours compared with CAD
See CAD comparison

Consistent readings

One sample hole: 2.88 mm at all three tested positions.

Specified accuracy

MPEE ±(30 + L/50) µm, with L in mm. Confirm the specification for your configuration.

Flexible positioning

Position the part within the measuring area and align its contour with CAD.

Raised features on both sides

The sample has bulges and raised rings on its two sides.

Uneven sheet parts

The same uneven sample gave in-tolerance spacing at both tested positions.

One inspection workflow

Scan, compare and report — with dimensions and tolerances in one place.

Raised or warped parts: suitability depends on height, visible contours and required tolerances. Confirm with a sample inspection.

See the sample results
SAMPLE INSPECTIONS

Consistent results across positions.

See how VQC and the comparison system measured the same sample at different positions.

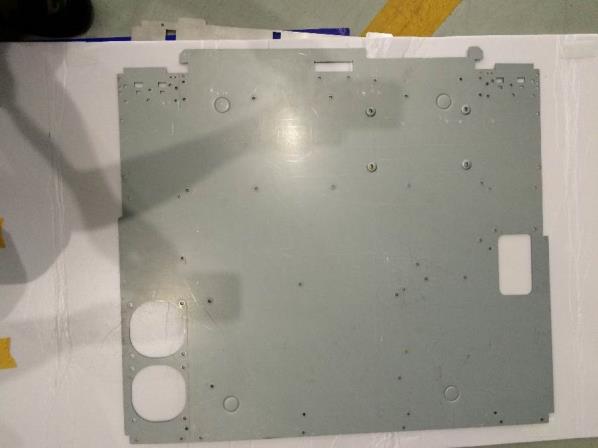

Actual telecom sheet metal sample from the comparison
01 / Telecom sheet metal part

Within tolerance at both positions.

Raised features on both sides · Uneven sheet

Required spacing: 623.40 ± 0.30 mm
Part positionVQC mmComparison system mm
Centre623.39Within tolerance623.634Within tolerance
Left623.44Within tolerance624.282Out of tolerance

VQC: both positions within tolerance. Comparison system: one reading outside tolerance.

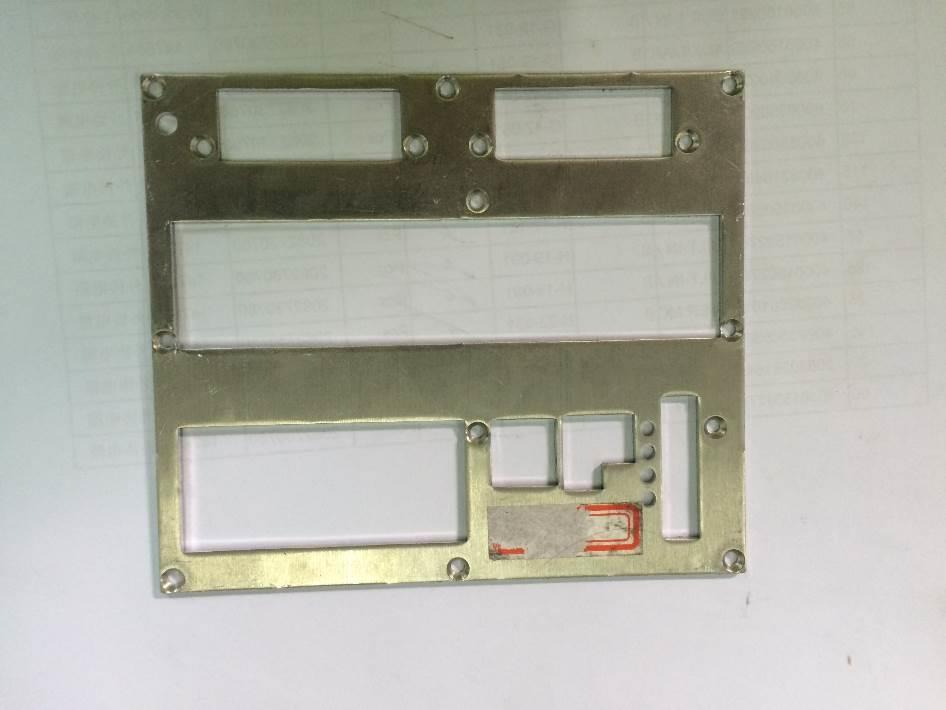

Actual medical instrument sheet metal sample from the comparison
02 / Medical instrument sheet metal part

One hole. Three matching readings.

Required hole diameter: Ø 2.7 ± 0.3 mm
Part positionVQC mmComparison system mm
Left2.88Within tolerance3.048Out of tolerance
Right2.88Within tolerance3.165Out of tolerance
Centre2.88Within tolerance2.930Within tolerance

VQC: 2.88 mm at all three positions. Comparison system: two readings outside tolerance.

Clear results for confident release.

Stable readings help your team make clearer inspection decisions.

Request a demo
02 / HOW IT WORKS

From CAD to report.

VQC_NT / Actual software interface

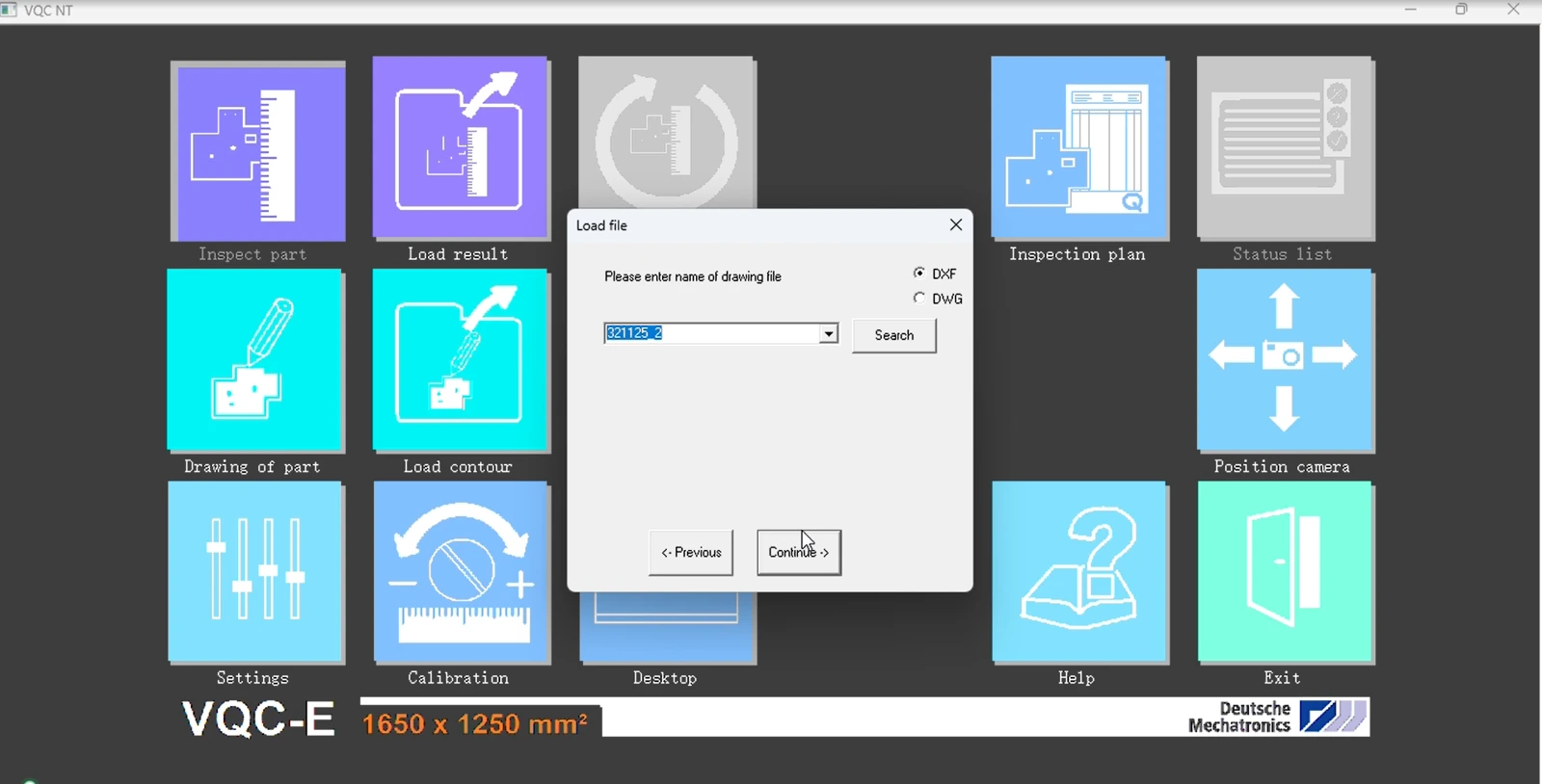

Actual VQC software screen: Load CAD
01 / 04

Load CAD

Select the matching CAD / DXF drawing or inspection plan. Nominal geometry and tolerances become the reference for the inspection.

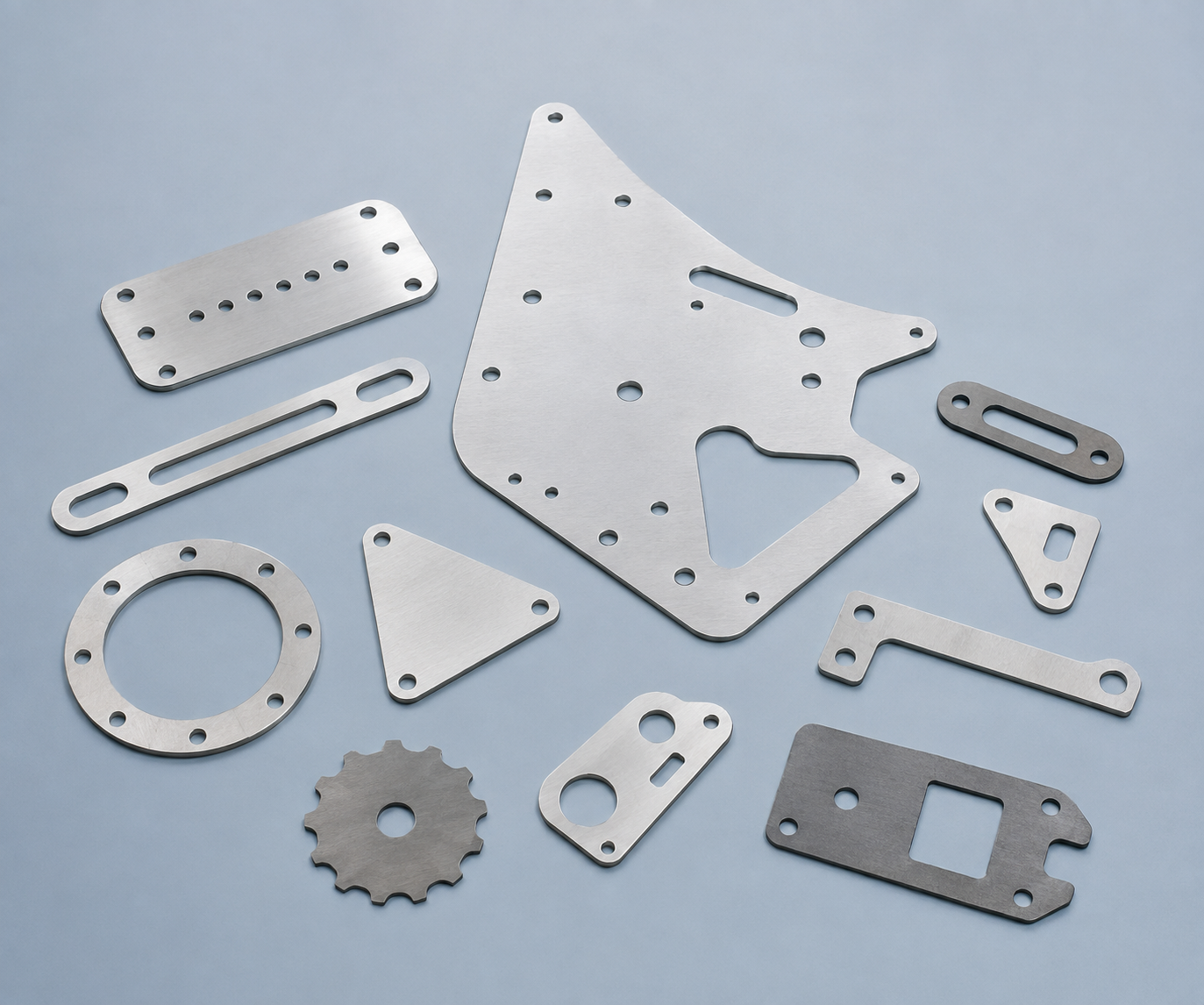

Illustrative flat sheet metal parts with varied profiles, circular holes and elongated slotsFlat sheet metal · Illustrative examples
03 / PARTS & APPLICATIONS

Built for flat parts.

Inspect profiles, hole positions and 2D dimensions on opaque flat parts.

Laser-cut partsPunched / blanked partsWaterjet-cut parts
Discuss your part
04 / INSPECTION OPTIONS

What VQC can inspect

Profiles, holes and dimensions, shown in real inspection results.

VQC_NT Recorded inspection results

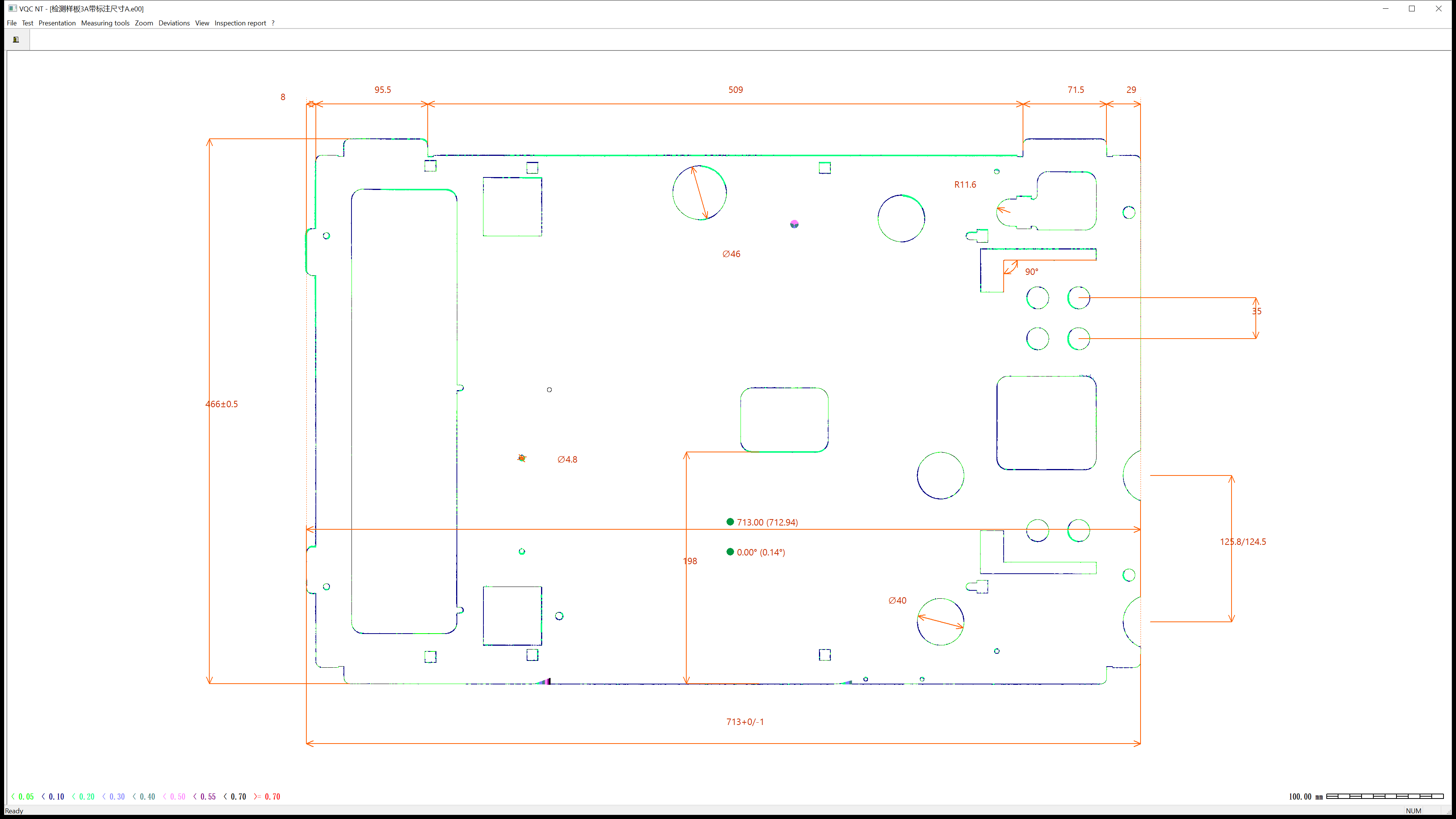

Sample result · Nominal and measured dimensions View full image
Sample result · Nominal and measured dimensions

Profile comparison

Compare the measured outline with CAD to locate deviations, extra cuts or missing cuts.

  • Complex outlines
  • Local contour deviations
VQC_NT Actual inspection plan

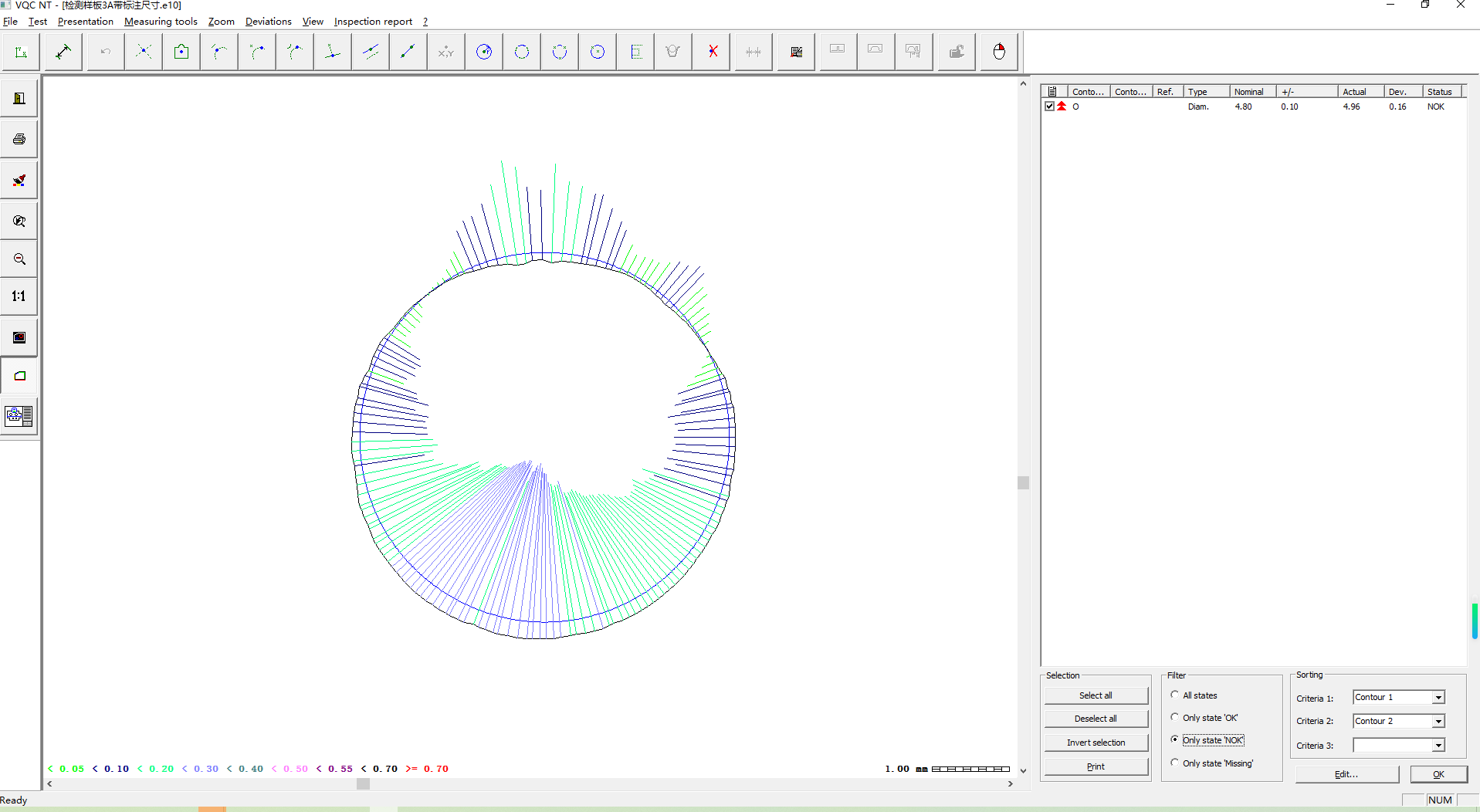

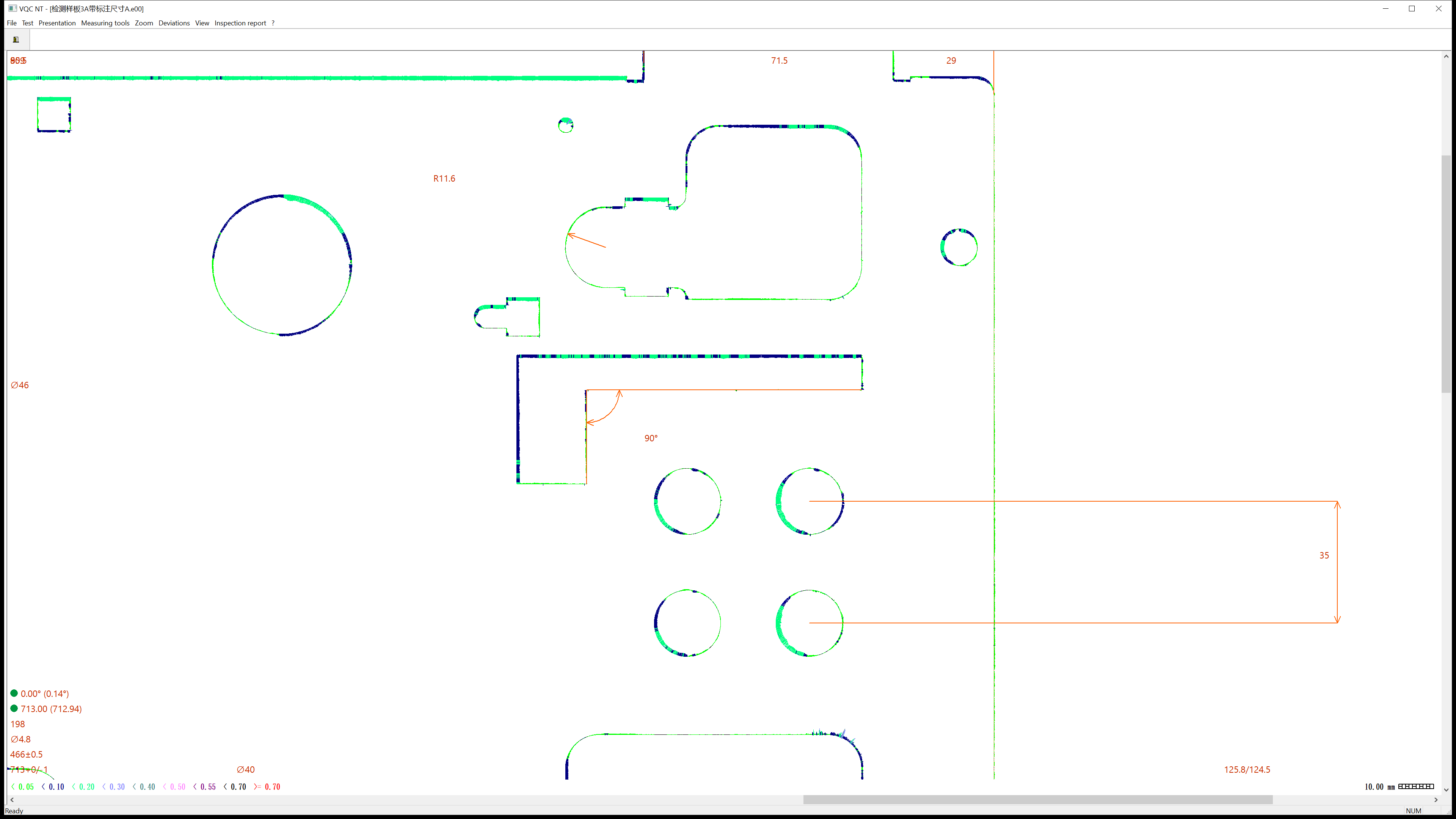

Interface detail · Hole diameter review View full image
Interface detail · Hole diameter review

Hole diameters

Measure circular hole diameters against nominal dimensions and tolerances to check for oversize or undersize holes.

  • Circular hole diameters
  • Dimensional deviations
VQC_NT Actual inspection plan

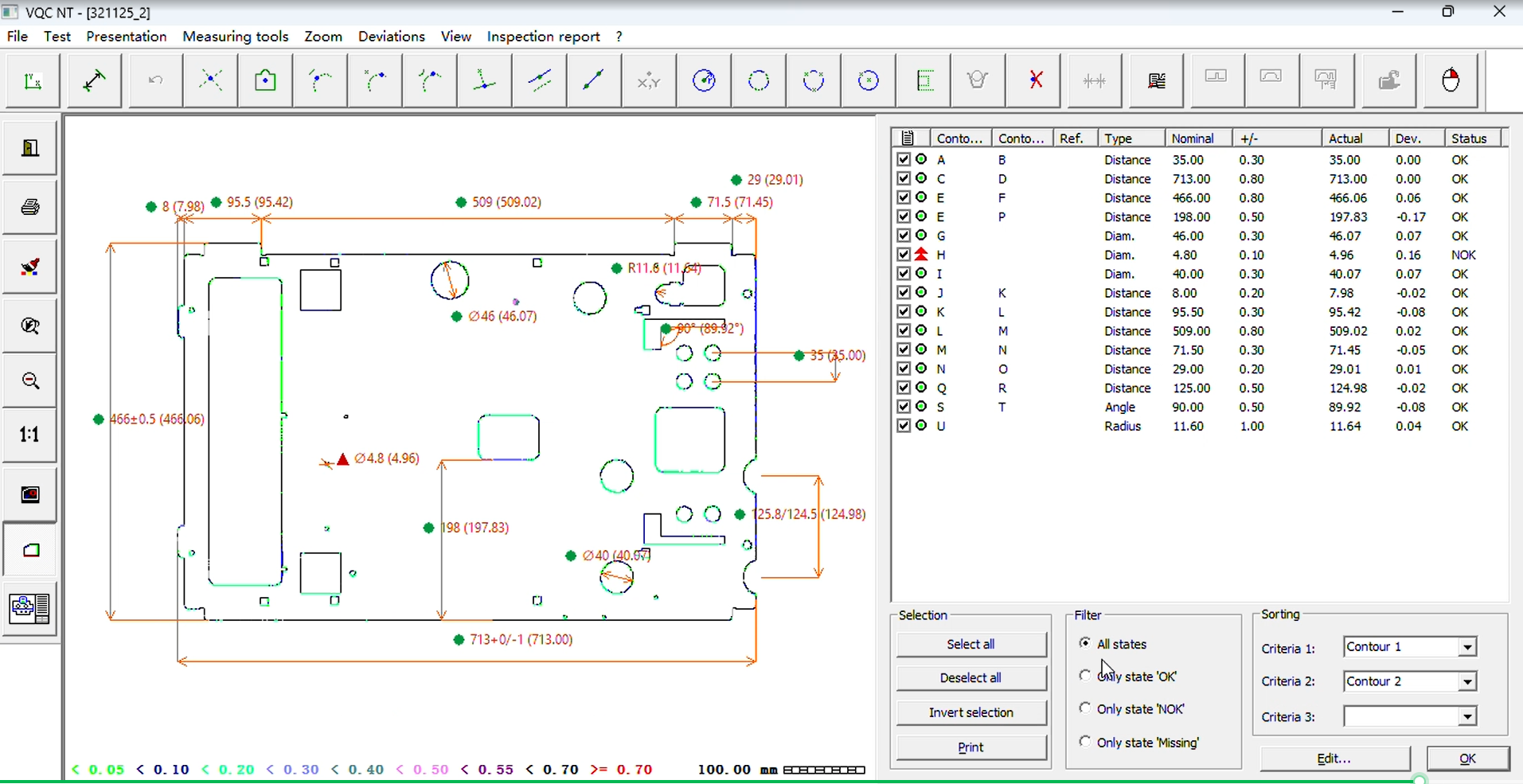

Actual interface · Dimensions and results View full image
Actual interface · Dimensions and results

Hole positions and spacing

Check centre-to-centre and hole-to-edge distances to identify positional deviations that may affect assembly.

  • Centre-to-centre distance
  • Hole-to-edge distance
VQC_NT Recorded inspection results
Drawing annotations · Not measured values View full image
Drawing annotations · Not measured values

Angles and radii

Review angle and radius annotations with measured results to check corners, cutouts and other local geometry.

  • Angle measurement
  • Arc radius
Explore the machine in 3DSee how parts are positioned and scanned.
Optical measurement accuracy±(30 + L/50) µmMPEE · L is the measured length in mm
Inspection method2D full contourProfiles, holes and local geometry in a single view
A digital quality workflowCAD REPORTFrom nominal geometry to traceable results
VQC / 3D machine view3D EXPLORER

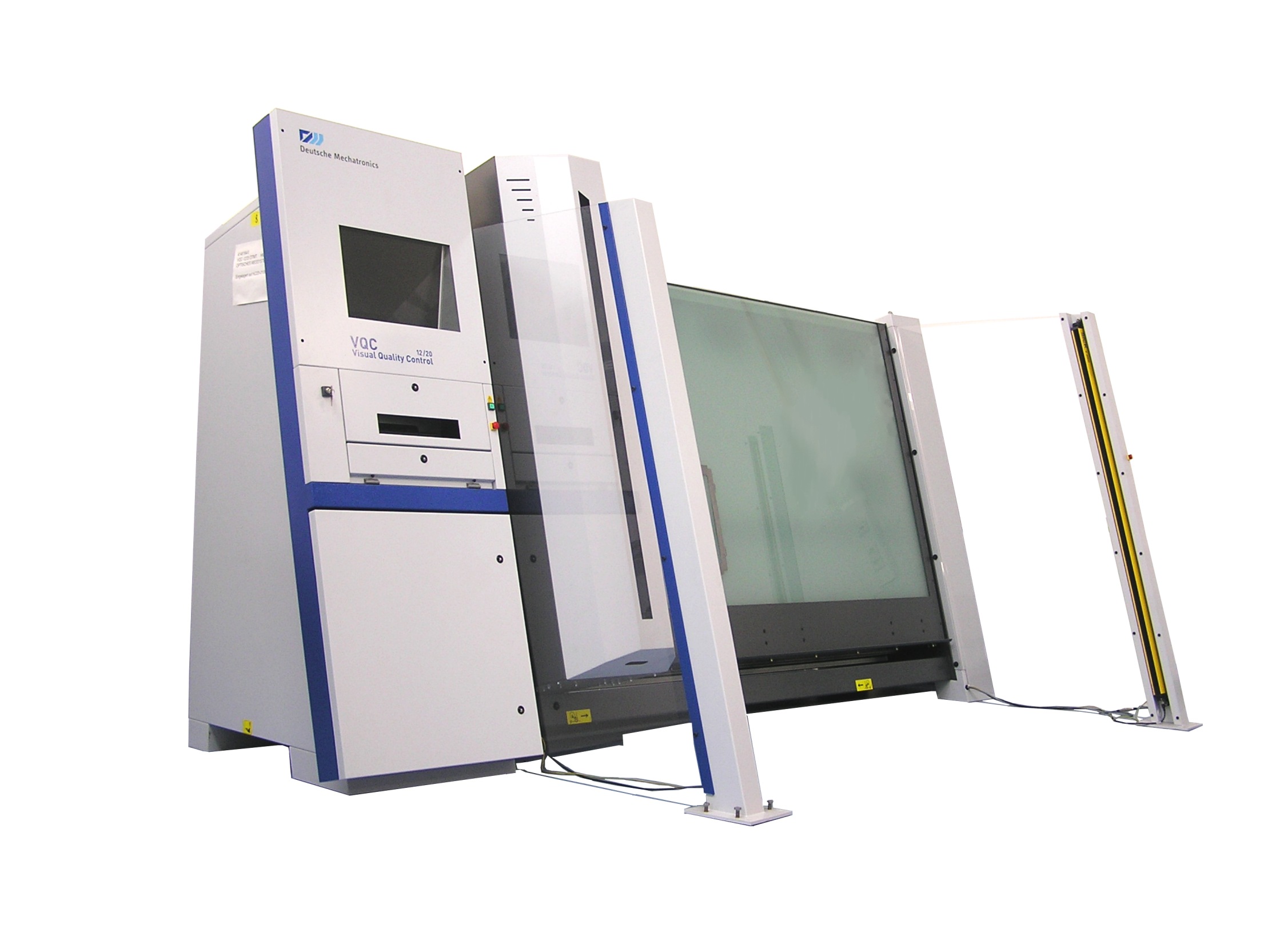

VQC optical quality inspection system
Preparing the 3D model…
Simulation · Illustrative dataPart positioned on support blocks
0%
Drag to orbit · Scroll to zoom · Arrow keys to orbit · + / − to zoomIllustrative part · Simulated data
3D illustrates the capture of 2D contours. Machine configuration depends on the agreed specification.

Common questions

Which parts can VQC inspect?

VQC checks profiles, hole positions and related dimensions on opaque flat parts. The workflow shown here does not inspect 3D surfaces, thickness or surface defects.

How do we assess inspection time and investment value?

Compare the full loading, scanning, review and reporting cycle using representative parts, alongside your inspection volume and current process.

What should we prepare for a part evaluation?

Bring a representative part, CAD / DXF drawing and key tolerances. Tell us which checks take the most effort.

LET’S MAKE QUALITY VISIBLE.

See VQC on your part.

Share your drawing and key tolerances. We’ll show you how VQC fits your inspection needs.

Request a demo
DTMT Hangzhou Co., Ltd.qin.wang@dtmthz.cn ↗+86 138 5712 4185 ↗Bring: part size · CAD / DXF · key tolerances
